About

Overview

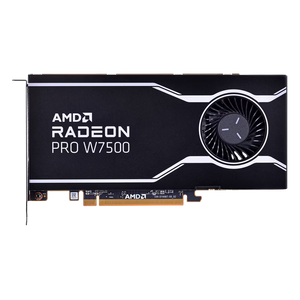

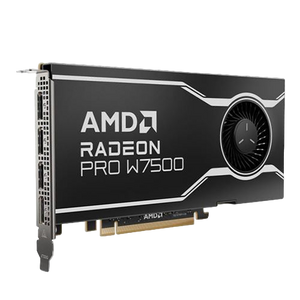

The Radeon Pro W7500 is a compact, single-slot workstation GPU that operates via a PCIe 4.0 x8 interface and draws power entirely from the PCIe slot, with no need for additional power connectors. It has a maximum power consumption of 70W and requires a minimum system PSU of 450W. Designed with an integrated single-fan active cooling system, it maintains efficient thermal performance in a slim form factor.

This GPU is equipped with 4x DisplayPort 2.1 outputs, supporting resolutions up to 8K, and features a robust suite of professional technologies, including AMD Remote Workstation, Radeon VR Ready Creator, and AMD Viewport Boost. It is powered by 8GB of GDDR6 memory on a 128-bit interface and runs at a base clock of 1500 MHz, with boost capabilities up to 1700 MHz.

With support for DirectX 12 Ultimate, the W7500 delivers real-time ray tracing, mesh shaders, and advanced rendering features, enabling game developers to achieve photorealistic lighting, shading, and textures for immersive visual experiences.

Characteristics
Family Radeon PRO
Series Radeon PRO W7000 Series
Form Factor Workstations
GPU Architecture AMD RDNA™ 3
Hardware Raytracing Yes
Lithography TSMC 6nm
Ray Accelerators 28
AI Accelerators 56
Stream Processors 1792
Compute Units 28
Peak Single Precision (FP32 Vector) Performance 17.3 TFLOPs
Peak Half Precision (FP16 Vector) Performance 90.4 TFLOPs
Peak Half Precision (FP16 Matrix) Performance 34.6 TFLOPs
Peak 8-bit Precision (INT8 Matrix) Performance 34.6 TOPs
Peak 4-bit Precision (INT4 Matrix) Performance 69 TOPs
Transistor Count 13.3 Billion
OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , Linux x86 64-Bit
External Power Connectors PCIe Powered
Total Board Power (TBP) 70W
Minimum PSU Recommendation 450 W
Dedicated Memory Size 8 GB
Dedicated Memory Type GDDR6
AMD Infinity Cache Technology 32 MB
Memory Interface 128-bit
Peak Memory Bandwidth 256 GB/s
Memory ECC Support No
GPU Form Factor PCIe® Add-in Card
Bus Type PCIe® 4.0 x8
Cooling Active
DisplayPort™ DisplayPort™: 4x DP 2.1
HDR Support Yes
8K Support Yes
Board Height Full Height
Board Length 8.5" (216 mm)
Board Width Single Slot
Supported Video Formats 1x Decode (+AV1 Encode and Decode) , 1x Encode
Supported Technologies AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender
10-bit Display Color Output Yes
12-bit Display Color Output Yes
3D Stereo Support Yes
DirectX® 12.0 Ultimate
OpenGL® 4.6
OpenCL™ 2.1
Vulkan® 1.3
Overview

The Radeon Pro W7500 is a compact, single-slot workstation GPU that operates via a PCIe 4.0 x8 interface and draws power entirely from the PCIe slot, with no need for additional power connectors. It has a maximum power consumption of 70W and requires a minimum system PSU of 450W. Designed with an integrated single-fan active cooling system, it maintains efficient thermal performance in a slim form factor.

This GPU is equipped with 4x DisplayPort 2.1 outputs, supporting resolutions up to 8K, and features a robust suite of professional technologies, including AMD Remote Workstation, Radeon VR Ready Creator, and AMD Viewport Boost. It is powered by 8GB of GDDR6 memory on a 128-bit interface and runs at a base clock of 1500 MHz, with boost capabilities up to 1700 MHz.

With support for DirectX 12 Ultimate, the W7500 delivers real-time ray tracing, mesh shaders, and advanced rendering features, enabling game developers to achieve photorealistic lighting, shading, and textures for immersive visual experiences.

Characteristics
Family Radeon PRO
Series Radeon PRO W7000 Series
Form Factor Workstations
GPU Architecture AMD RDNA™ 3
Hardware Raytracing Yes
Lithography TSMC 6nm
Ray Accelerators 28
AI Accelerators 56
Stream Processors 1792
Compute Units 28
Peak Single Precision (FP32 Vector) Performance 17.3 TFLOPs
Peak Half Precision (FP16 Vector) Performance 90.4 TFLOPs
Peak Half Precision (FP16 Matrix) Performance 34.6 TFLOPs
Peak 8-bit Precision (INT8 Matrix) Performance 34.6 TOPs
Peak 4-bit Precision (INT4 Matrix) Performance 69 TOPs
Transistor Count 13.3 Billion
OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , Linux x86 64-Bit
External Power Connectors PCIe Powered
Total Board Power (TBP) 70W
Minimum PSU Recommendation 450 W
Dedicated Memory Size 8 GB
Dedicated Memory Type GDDR6
AMD Infinity Cache Technology 32 MB
Memory Interface 128-bit
Peak Memory Bandwidth 256 GB/s
Memory ECC Support No
GPU Form Factor PCIe® Add-in Card
Bus Type PCIe® 4.0 x8
Cooling Active
DisplayPort™ DisplayPort™: 4x DP 2.1
HDR Support Yes
8K Support Yes
Board Height Full Height
Board Length 8.5" (216 mm)
Board Width Single Slot
Supported Video Formats 1x Decode (+AV1 Encode and Decode) , 1x Encode
Supported Technologies AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender
10-bit Display Color Output Yes
12-bit Display Color Output Yes
3D Stereo Support Yes
DirectX® 12.0 Ultimate
OpenGL® 4.6
OpenCL™ 2.1
Vulkan® 1.3
