The NVIDIA® A100 80GB PCIe card delivers unprecedented acceleration to power the world’s highest-performing elastic data centers for AI, data analytics, and high-performance computing (HPC) applications. NVIDIA A100 Tensor Core technology supports a broad range of math precisions, providing a single accelerator for every compute workload. The NVIDIA A100 80GB PCIe supports double precision (FP64), single precision (FP32), half precision (FP16), and integer (INT8) compute tasks.

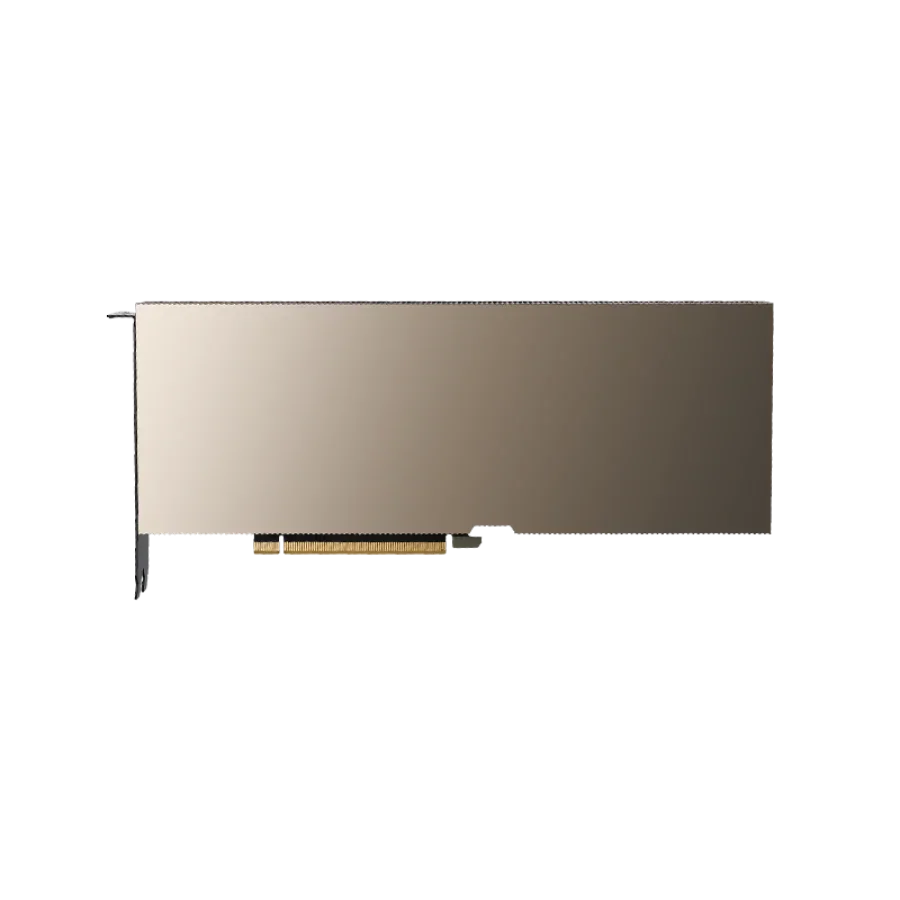

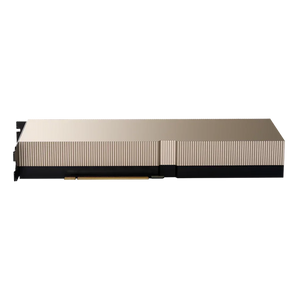

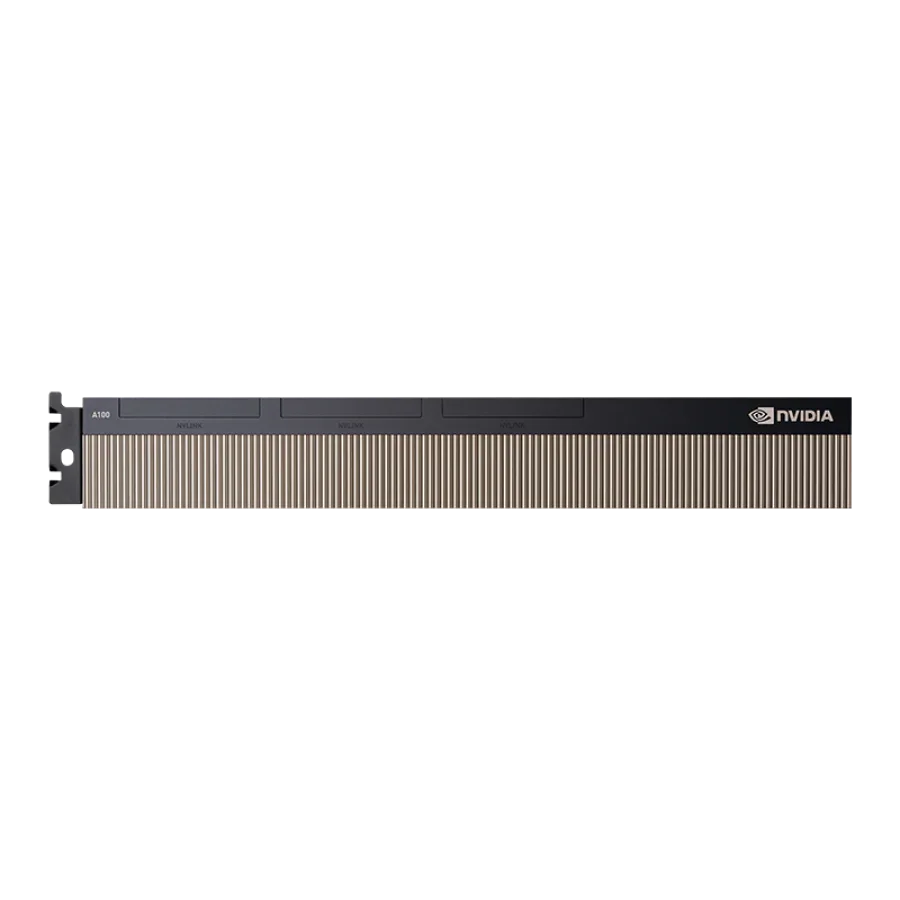

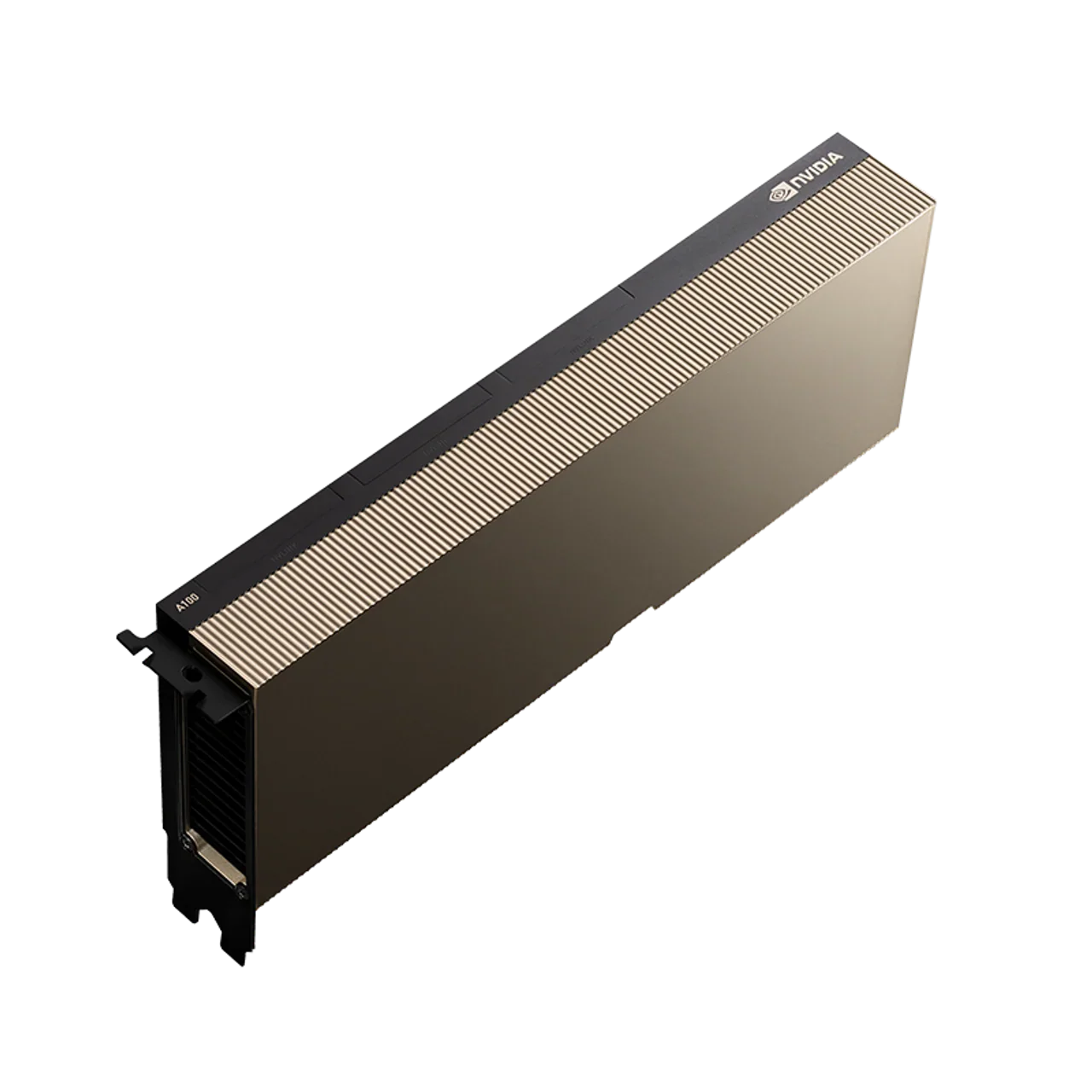

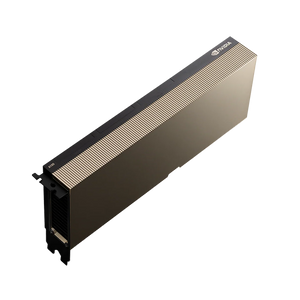

The NVIDIA A100 80GB card is a dual-slot 10.5 inch PCI Express Gen4 card based on the NVIDIA Ampere GA100 graphics processing unit (GPU). It uses a passive heat sink for cooling, which requires system airflow to properly operate the card within its thermal limits. The NVIDIA A100 80GB PCIe operates unconstrained up to its maximum thermal design power (TDP) level of 300 W to accelerate applications that require the fastest computational speed and highest data throughput. The latest generation A100 80GB PCIe doubles GPU memory and debuts the world’s highest PCIe card memory bandwidth up to 1.94 terabytes per second (TB/s), speeding time to solution for the largest models and most massive data sets.

The NVIDIA A100 80GB PCIe card features Multi-Instance GPU (MIG) capability, which can be partitioned into as many as seven isolated GPU instances, providing a unified platform that enables elastic data centers to dynamically adjust to shifting workload demands. When using MIG to partition an A100 GPU into up to seven smaller instances, A100 can readily handle different-sized acceleration needs, from the smallest job to the biggest multi-node workload. A100 80GB versatility means IT managers can maximize the utility of every GPU in their data center.

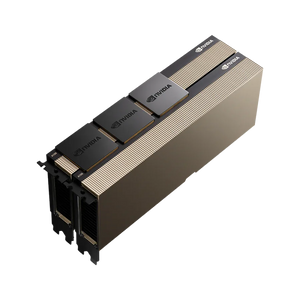

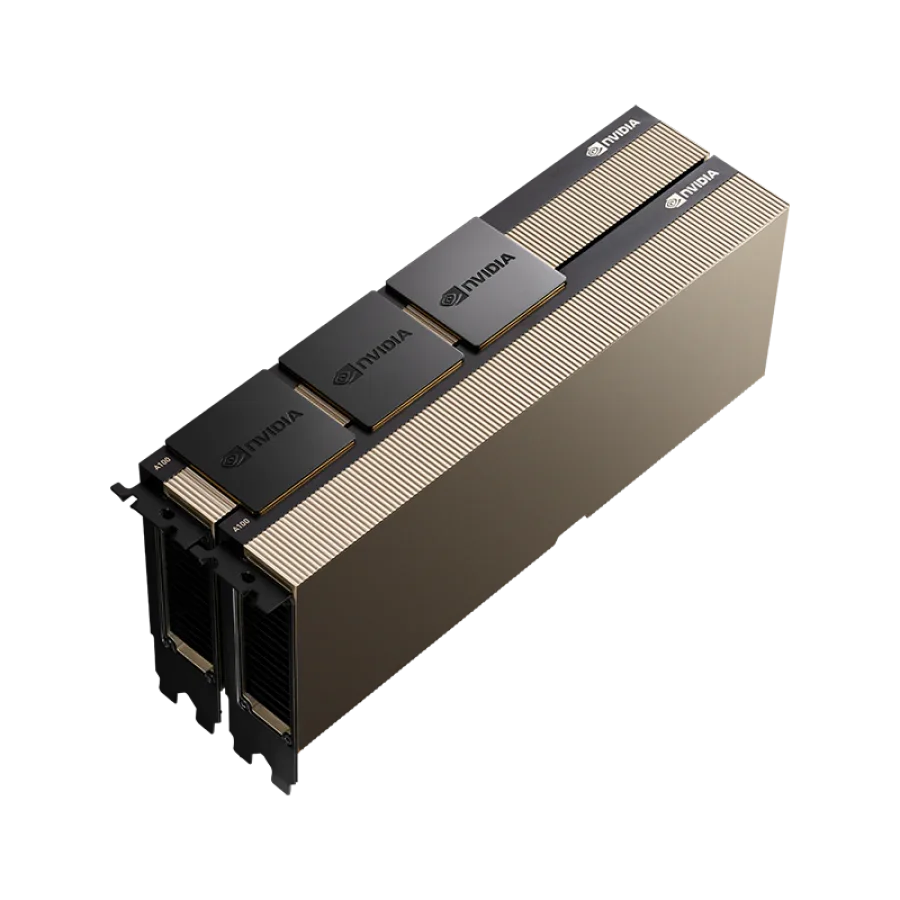

NVIDIA A100 80GB PCIe cards use three NVIDIA® NVLink® bridges that allow multiple A100 80GB PCIe cards to be connected together to deliver 600 GB/s bandwidth or 10x the bandwidth of PCIe Gen4, in order to maximize application throughput with the larger workloads.
