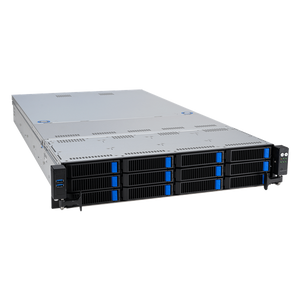

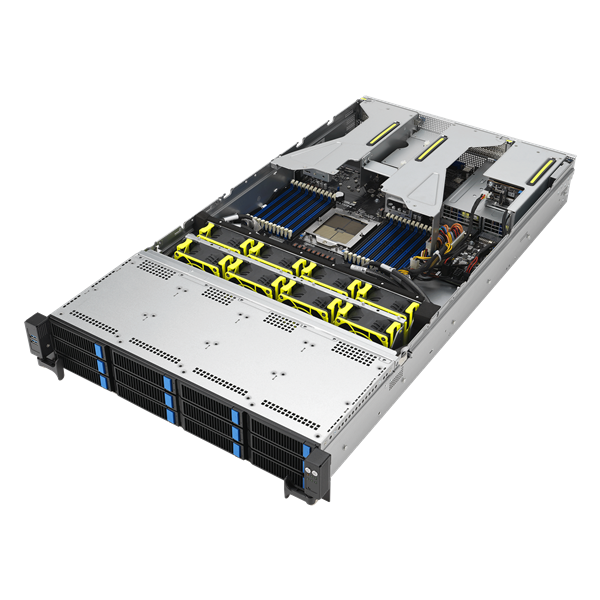

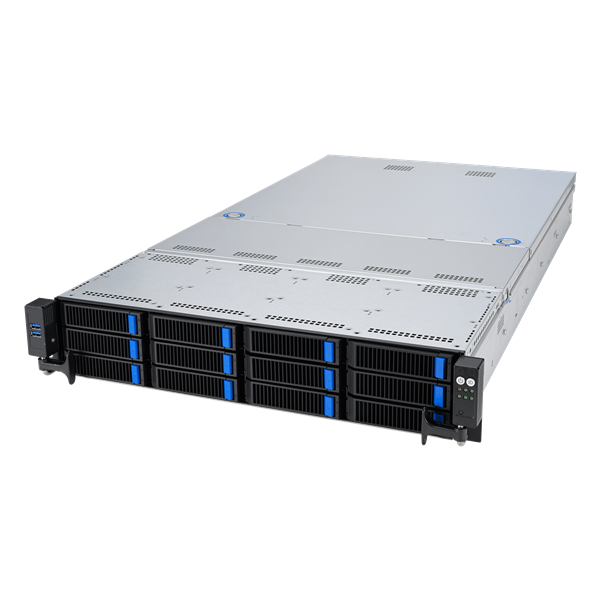

ASUS RS521A-E12-RS12U: Modular High-Performance 2U Single-Socket Server

Accelerate your modern data center with the ASUS RS521A-E12-RS12U, a highly scalable 2U server engineered to deliver dual-socket performance in a single-socket design. Engineered for versatile enterprise workloads, it is powered by the latest AMD EPYC™ 9005 series processors supporting up to 192 Zen 5c cores and a 400W TDP.

Uncompromising Single-Socket Performance The ASUS RS521A-E12-RS12U is engineered to deliver unprecedented compute density and efficiency in a versatile 2U form factor. Powered by a single AMD EPYC™ 9005 series processor, it provides immense processing capabilities with up to 192 cores and supports a maximum CPU TDP of up to 400W. By fully utilizing up to 128 PCIe Gen5 lanes from a single socket, this server offers the exceptional I/O bandwidth and processing power typically reserved for dual-processor systems, allowing enterprises to tackle compute-intensive workloads while significantly reducing per-socket software licensing costs.

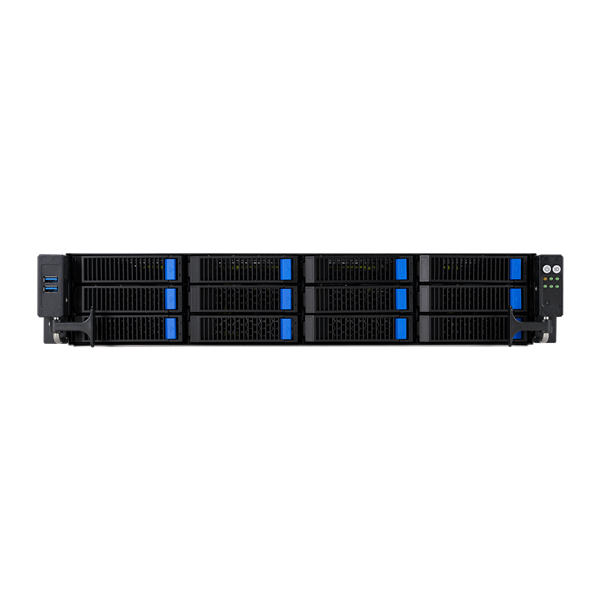

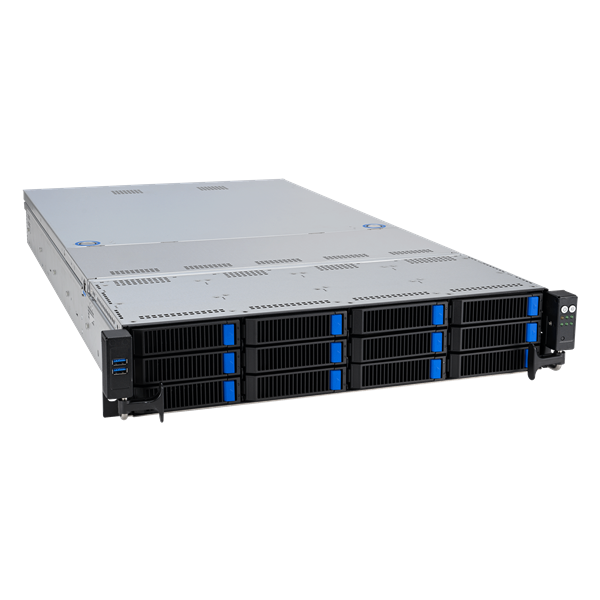

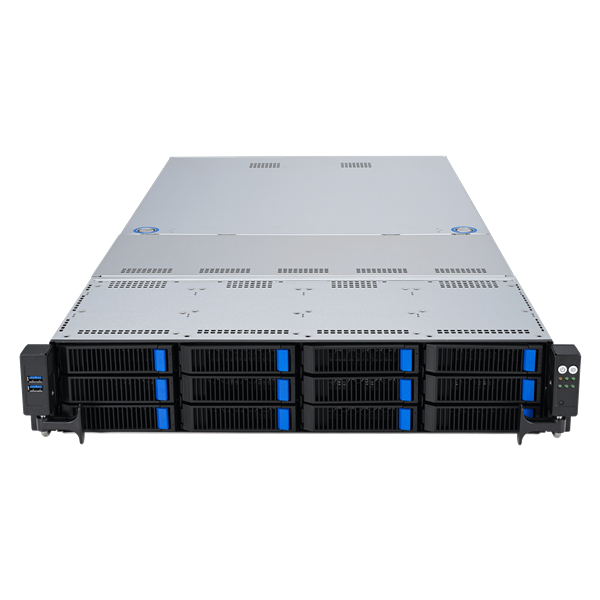

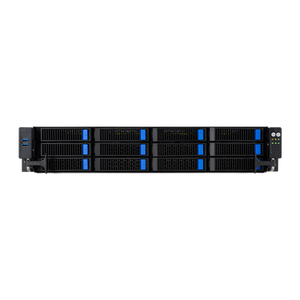

Massive Memory & High-Capacity Hybrid Storage Feed data-hungry applications with industry-leading memory bandwidth. This server features a massive 24 DDR5 DIMM slots supporting 12-channel memory at speeds up to 6000MHz, allowing for terabyte-scale memory footprints perfect for in-memory databases. For storage, the RS12U configuration is highly accommodating, featuring twelve 3.5"/2.5" hot-swap front bays that support a flexible mix of NVMe all-flash, SATA, and SAS drives (SAS requires an optional HBA/RAID card). It also includes two internal M.2 Gen4/Gen5 sockets for ultra-fast, dedicated OS boot and caching drives.

Gen5 Expandability & GPU Acceleration Built to easily adapt to evolving business demands, this server provides superior structural design for robust expansion. To ensure your infrastructure is future-proof, the system features five PCIe Gen5 expansion slots. This expansive I/O capability natively supports up to two dual-slot enterprise GPUs, making it an absolute powerhouse for localized AI inference, 3D rendering, and VDI workloads. Additionally, it features a dedicated OCP 3.0 Gen5 x16 mezzanine slot, providing the ultimate bandwidth for ultra-fast networking and advanced Data Processing Units (DPUs) without sacrificing standard PCIe slots.

Hardware-Level Security & Remote Management Protect your enterprise infrastructure from the silicon level up. The RS521A-E12-RS12U integrates a PFR FPGA as the platform Root-of-Trust to ensure firmware resiliency, paired with Trusted Platform Module 2.0 (TPM 2.0) readiness to secure hardware via integrated cryptographic keys. For IT administration, the server includes ASUS Control Center software and an onboard ASMB11-iKVM (ASPEED AST2600) module for comprehensive KVM-over-IP out-of-band remote management, drastically reducing system downtime and servicing costs.

Ideal Target Applications:

• Software-Defined Storage (SDS): Utilize the massive capacity of twelve 3.5"/2.5" NVMe/SATA/SAS bays to build high-density, tiered storage nodes and data lakes.
• AI Inference & VDI: Leverage the expansive PCIe 5.0 topology and support for up to two dual-slot GPUs to accelerate machine learning, 3D rendering, and dense virtual desktop infrastructure.
• High-Performance Computing (HPC): Harness the single-socket power of up to 192 AMD EPYC cores and 12-channel DDR5 memory to drive complex simulations and advanced data analytics.
• Enterprise Virtualization: A perfectly balanced, highly scalable compute node that delivers dual-socket performance and I/O in a cost-effective 1P design, significantly reducing virtualization software licensing costs.
