ASUS RS700A-E13-RS4U: Modular High-Performance 1U Dual-Socket Server

Accelerate your modern data center with the ASUS RS700A-E13-RS4U, a highly scalable 1U server built on the innovative DC-MHS architecture. Engineered for versatile enterprise workloads, it is powered by dual next-generation AMD EPYC™ 9005 series processors supporting up to 400W TDP

Next-Generation Dual-Socket Performance

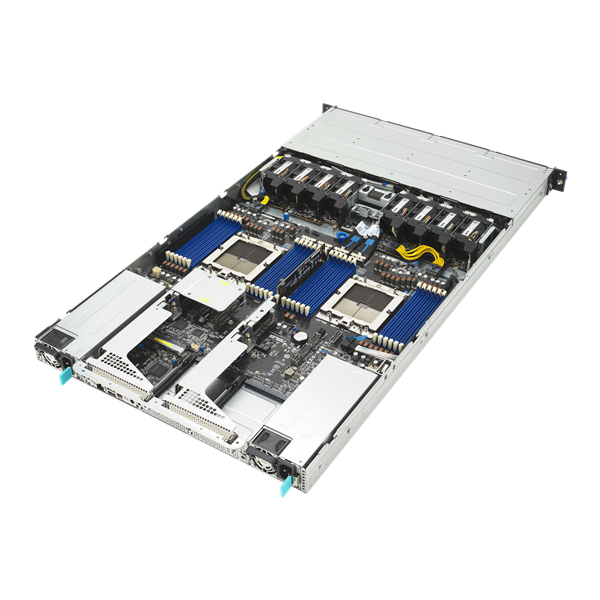

The ASUS RS700A-E13-RS4U is engineered to deliver exceptional compute density in a streamlined 1U form factor. Powered by dual AMD EPYC™ 9005 series processors, it provides immense processing capabilities and supports a maximum CPU TDP of up to 400W per socket. This elite processing power enables enterprises to tackle compute-intensive workloads, advanced data analytics, and dense virtualization deployments while maintaining outstanding energy efficiency.

Massive Memory & Versatile Hybrid Storage

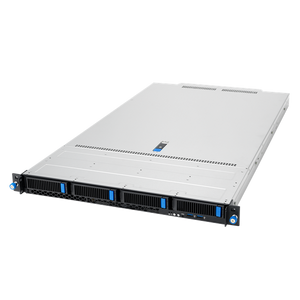

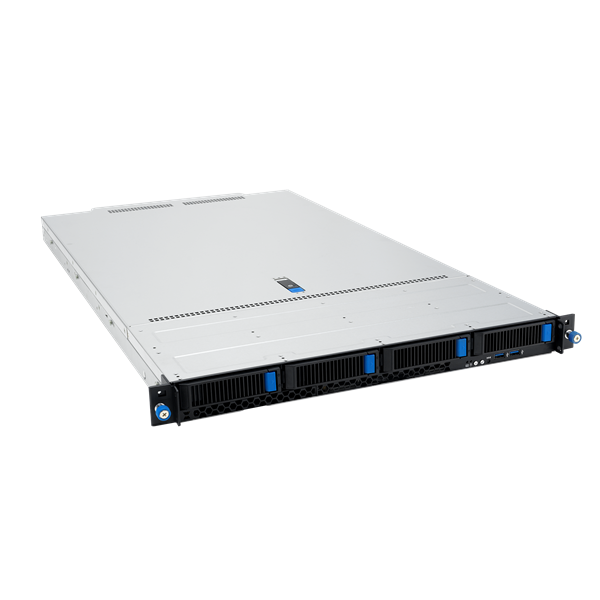

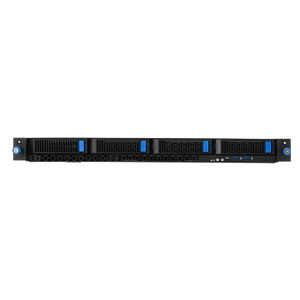

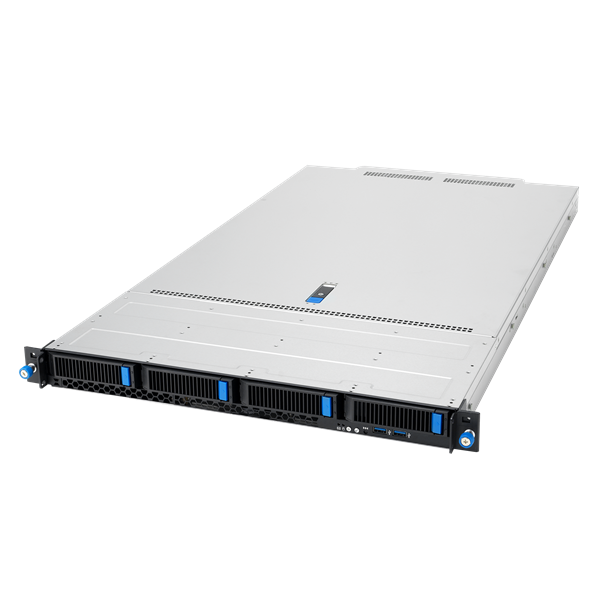

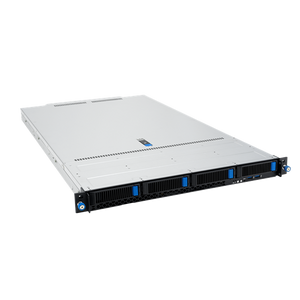

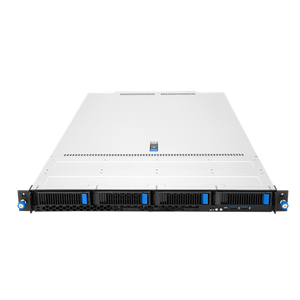

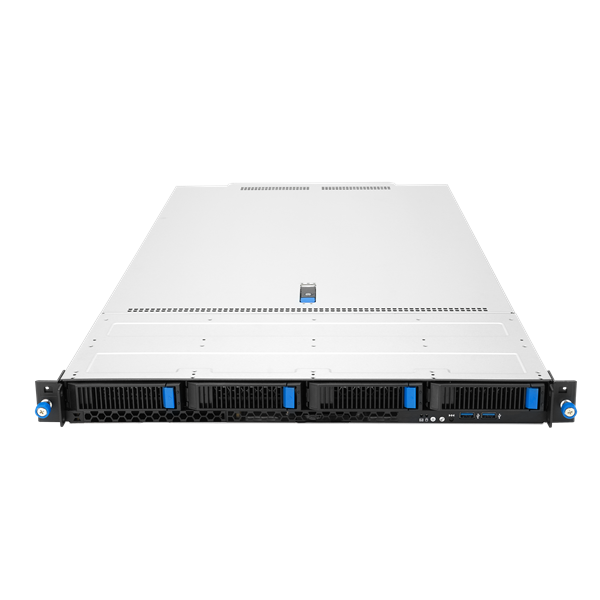

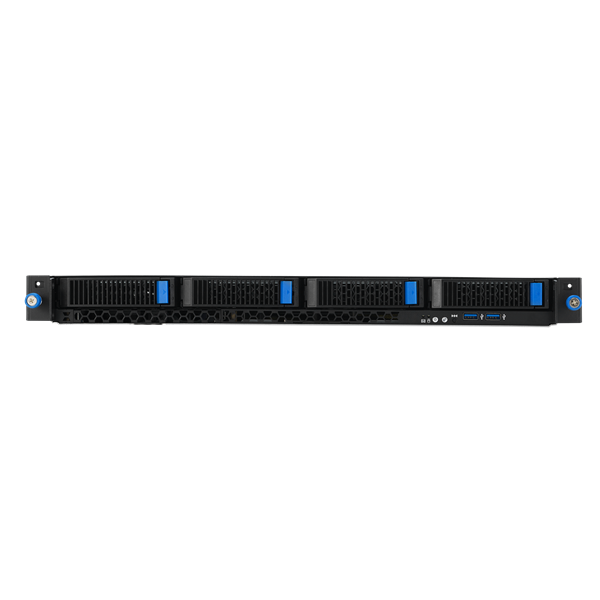

Feed demanding applications with industry-leading memory bandwidth. This server features a massive 24 DDR5 DIMM slots supporting 12-channel memory per CPU at speeds up to 6000MHz (1DPC), allowing for a maximum memory footprint of up to 3TB. For storage, the RS4U configuration is highly versatile, featuring four 3.5" hot-swap front bays that support a hybrid mix of NVMe, SATA, and SAS drives (SAS requires an optional HBA/RAID card). It also includes two internal DIMM.2 Gen3 x4 sockets for ultra-fast M.2 OS boot drives.

DC-MHS Architecture & Gen5 Expandability

Built upon the standardized DC-MHS (Data Center Modular Hardware System) architecture, this server provides seamless integration, superior thermal optimization, and simplified maintenance. To ensure your infrastructure is future-proof, the system features four PCIe Gen5 expansion slots. This includes two PCIe Gen5 x16 (FHHL) slots for high-speed add-on cards and two OCP 3.0 Gen5 x16 slots, providing the ultimate bandwidth for ultra-fast networking and advanced Data Processing Units (DPUs).

Hardware-Level Security & Remote Management

Protect your enterprise infrastructure from the silicon level up. The RS700A-E13 integrates a PFR FPGA as the platform Root-of-Trust to ensure firmware resiliency, paired with a Trusted Platform Module 2.0 (TPM 2.0) to secure hardware via integrated cryptographic keys. For IT administration, the server includes ASUS Control Center software and an onboard ASMB12-iKVM module for comprehensive KVM-over-IP out-of-band remote management, drastically reducing system downtime and servicing costs.

Ideal Target Applications:

• Enterprise Virtualization: Leverage dual AMD 9005 processors and up to 3TB of DDR5 memory to deploy dense virtual machines in a compact 1U rack space.
• Software-Defined Storage (SDS): Utilize the flexible four 3.5" NVMe/SATA/SAS bays to build high-capacity, tiered storage nodes.
• Cloud Computing: The modular DC-MHS architecture streamlines data center integration and optimizes Total Cost of Ownership (TCO).
• General IT Infrastructure: A perfectly balanced, high-performance compute node for file serving, databases, and internal web applications.
