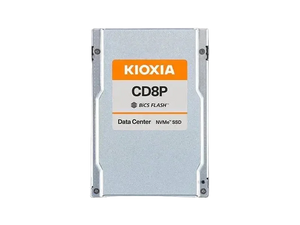

The Kioxia CD8P-R Series is a read-intensive data center NVMe SSD optimized for scale-out and cloud applications including big data, IoT, online transaction processing, and virtualization. With 7.68TB capacity, a PCIe 5.0 / NVMe 2.0 interface, and up to 2,000,000 IOPS random read, the CD8P-R delivers exceptional performance for demanding data center workloads. The single-port design is optimized for data-center-class workloads and includes power loss protection (PLP), end-to-end data correction, and 1 DWPD endurance. TAA compliant and manufactured in Japan.
Characteristics
Model
KCD8XPUG7T68
Form Factor
2.5\
SSD Capacity
7680 GB
Flash Type
BiCS FLASH TLC
Interface
PCIe 5.0; NVMe 2.0
Max Sequential Read
12000 MB/s
Max Sequential Write
5500 MB/s
Max 4KB Random Read
2000000 IOPS
Max 4KB Random Write
200000 IOPS
Endurance
1 DWPD
MTBF
2500000 hours
Power Consumption Operational
21 Watt
Voltage Required
12V +/- 10%, 3.3V +/- 15%
Width
69.85 mm
Depth
100.45 mm
Height
15 mm
Min Operating Temperature
0 C
Max Operating Temperature
73 C
Features
Single-port design, optimized for data center class workloads; Power loss protection (PLP); End-to-end data correction
TAA Compliant
Yes
Overview
The Kioxia CD8P-R Series is a read-intensive data center NVMe SSD optimized for scale-out and cloud applications including big data, IoT, online transaction processing, and virtualization. With 7.68TB capacity, a PCIe 5.0 / NVMe 2.0 interface, and up to 2,000,000 IOPS random read, the CD8P-R delivers exceptional performance for demanding data center workloads. The single-port design is optimized for data-center-class workloads and includes power loss protection (PLP), end-to-end data correction, and 1 DWPD endurance. TAA compliant and manufactured in Japan.
Characteristics
Model
KCD8XPUG7T68
Form Factor
2.5\
SSD Capacity
7680 GB
Flash Type
BiCS FLASH TLC
Interface
PCIe 5.0; NVMe 2.0
Max Sequential Read
12000 MB/s
Max Sequential Write
5500 MB/s
Max 4KB Random Read
2000000 IOPS
Max 4KB Random Write
200000 IOPS
Endurance
1 DWPD
MTBF
2500000 hours
Power Consumption Operational
21 Watt
Voltage Required
12V +/- 10%, 3.3V +/- 15%
Width
69.85 mm
Depth
100.45 mm
Height
15 mm
Min Operating Temperature
0 C
Max Operating Temperature
73 C
Features
Single-port design, optimized for data center class workloads; Power loss protection (PLP); End-to-end data correction
TAA Compliant
Yes
KIOXIA AMERICA, INC.
by
KIOXIA AMERICA, INC.
SKU: SDF7283GEB01T Mfr #: SDF7283GEB01T
- Regular price
- $4,162.94
- Sale price
- $4,162.94
- Regular price
-
$4,549.66
FREE Delivery on Orders $3,000+
* NO SALES TAX Except in CA
** Prices and stock might change without notice due to high market volatility.
The Kioxia CD8P-R Series KCD8XPUG7T68 is a 7.68TB read-intensive data center NVMe SSD on PCIe 5.0 / NVMe 2.0. With BiCS FLASH TL...
Read more
The Kioxia CD8P-R Series KCD8XPUG7T68 is a 7.68TB read-intensive data center NVMe SSD on PCIe 5.0 / NVMe 2.0. With BiCS FLASH TLC, up to 12,000 MB/s sequential read, 2M IOPS random read, and 1 DWPD endurance, it's ideal for big data, OLTP, and virtualization at scale.
Condition: NEW
Request Personalized Quote from our dedicated sales manager - Get Up To 5% Extra Discount!
Couldn't load pickup availability
Warranty & Support
Covered under a 3-YEAR EXTENDED WARRANTY from the manufacturer & SMTTR.
Shipping & Fulfillment
All products ship from verified U.S. distributors or SMTTR testing facility
Returns & Refunds
Returns accepted within 30 days
